Model(GMP) Oven For Medicine Use

Brand Name : TY

Model Number : GMP

Place of Origin : China

MOQ : 1

Price : USD10000

Payment Terms : D/P, T/T, Western Union

Supply Ability : 100

Delivery Time : 5-8days

Packaging Details : case

name : Oven For Medicine Use

from : China

series : GMP

Contact Now

Features:
● The three kinds of heat source used for heating are steam, electricity, both steam and electricity.
● Operation temperature: steam,50-140℃,Max.150℃; electricity, 50-350℃. The temperature can be controlled automatically. Moreover it can be recorded through recorder.
● The inner wall of oven body is fully welded . Every place of transition adopts circular arc and no dead.
● The seal property of whole machine is good . Being adopted unique guide rail seal apparatus, the seal property can be guaranteed.
● The air inlet is equipped with high effective air filter and the damp exhaust outlet is equipped with middle effective air filter.
● The double doors of oven adapt mechanical interlock apparatus.
● All parts inside the oven can be assembled and disassembled quickly in order to clean conveniently.
● The control system has text display and touch screen for your choice.
● The whole machine is in conformity with the requirements of GMP.

Model(GMP) Oven For Medicine Use

Parameters/Model	Drying capacity (Kg)	Power of fan(KW)	Steam consumption (Kg/h)	Drying trolly(set)	Baking pan (PC)	Overall dimension L×W×H(mm)	Temperature difference between up and low(℃)
GMP-0	35	0.45	8	/	16	1130×1100×1750	±2
GMP-I	120	0.45	18	2	48	2300×1200×2000	±2
GMP-II	240	0.9	36	4	96	2300×2200×2000	±2
GMP-III	360	1.35	54	6	144	3430×2200×2000	±2
GMP-IV	480	1.8	72	8	192	4460×2200×2290	±2

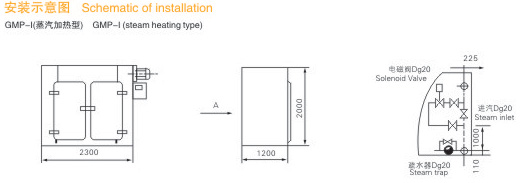

Model(GMP) Oven For Medicine Use Images
